Description

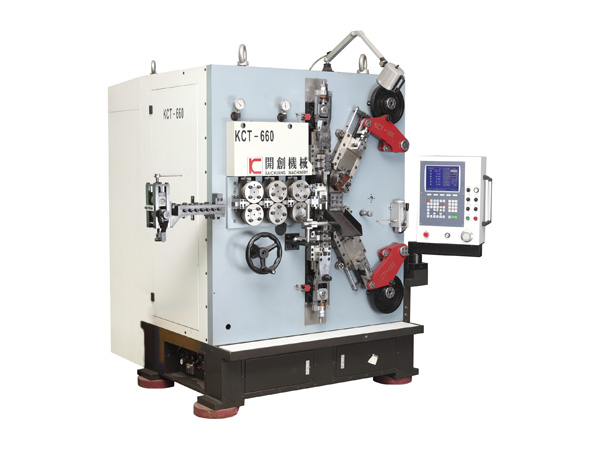

KCT-660 six axis CNC High-speed spring coiling machine, is my company in recent years to successfully market a new 6 axis computer spring machine, processing line diameter φ2.5-6.0mm, mainly suitable for processing all kinds of precision compression spring and simple torsion spring and wire forming products etc. if the pressure, spring, spring, spring tip tower.
Parameters
| 機 型 | Model | KCT-660 |
| 軸 數 | Axis Count | 6 軸 |
| 加工線徑 | Wire Size Range | φ2.5-6.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ110mm |
| 最大彈簧螺距 | Max Pitch Of Spring | 80mm |
| 最大送線速度 | Max Feeding Speed | 60m/min |
| 旋繞比 | Spring Index | 3 |
| 送線輪組數 | Wire Feeding Wheel Count | 3 pairs（組） |
| 送線伺服電機 | Feeding Servo Motor | 15.0kw |
| 上切刀伺服電機 | Upper Cutter Servo Motor | 5.5kw |
| 下切刀伺服電機 | Under Cutter Servo Motor | 5.5kw |
| 凸輪伺服電機 | Cam Servo Motor | 2.9kw*2 |
| 螺距伺服電機 | Pitch Servo Motor | 1.8kw |
| 機器尺寸 | Dimension(LxWxH) | 1700x2200x2200mm |
| 機器重量 | Weight | 4800kg |
| 電 源 | Power | 3-380VAC 50HZ |
Our company's KCT-660 six axis CNC High-speed spring coiling machine is composed of 6 Japan Yaskawa servo motor and etwo computer control system, each axis can operate independently or simultaneously into synchronous operation; spring forming technology to create a company of years of sedimentation, enhance the man-machine conversation ability, with a minute spring forming processing, with fast forming speed, precision, low noise and save time and material cost of debugging, can realize the function of cutting, cutting straight cut and swing cutting from different angles, with HD video length measurement function.
